Merge

Merge a branch

If we finish developing in our branch (e.g., dev/data_loader), we can merge it into our main branch.

git checkout main  # Move to master branch
git pull origin main  # If you are coworking through github, pull any new remote changes
git branch --merged  # List out the branches we have merged to date
git merge dev/data_loader  # Merge in our branch
git push origin main  # Push our changes to master
git branch --merged  # Note new newly merged branch has been added

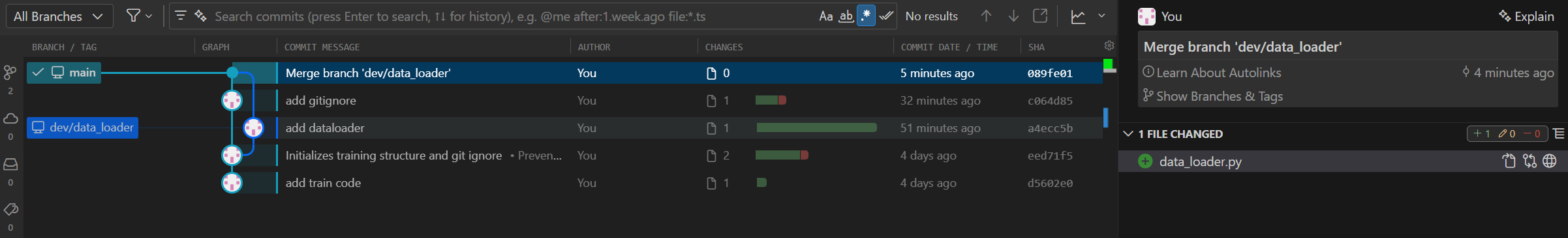

git log --graph --oneline  # see commit history as graph

Warning

If both main and your merging branch (e.g., dev/data_loader) have changes to the same lines of code, Git will encounter a merge conflict and display an error message. You will need to resolve these conflicts before completing the merge. You can do it manually, or with VS Code supporting GUI. See this page

Tip

After merging, you may remove the branch if you don't want to keep it.

git branch -d dev/data_loader  # Remove the local branch that was just merged
git push origin --delete dev/data_loader  # Remove the branch from the remote as well

Check status and keep developing

git status  # check status

Make updates and stage, commit.

Types of merge

When you run git merge, Git decides which strategy to use based on the shape of the commit history. The two most common outcomes are a fast-forward merge and a regular (3-way) merge.

Regular (3-way) merge

A regular merge is needed when both branches have new commits since they diverged. Git finds the common ancestor, compares the two branch tips against it, and combines the changes into a new merge commit with two parents.

Before merge, main and feature have diverged:

%%{init: {'theme': 'base', 'themeVariables': {'git0': '#4A90D9', 'git1': '#E07B53', 'gitBranchLabel0': '#ffffff', 'gitBranchLabel1': '#ffffff', 'commitLabelColor': '#333333', 'commitLabelBackground': '#ffffff'}} }%%
gitGraph
    commit id: "A"
    commit id: "B"
    branch feature
    commit id: "C"
    commit id: "D"
    checkout main
    commit id: "E"

After git merge feature on main, a merge commit M joins the two histories:

%%{init: {'theme': 'base', 'themeVariables': {'git0': '#4A90D9', 'git1': '#E07B53', 'gitBranchLabel0': '#ffffff', 'gitBranchLabel1': '#ffffff', 'commitLabelColor': '#333333', 'commitLabelBackground': '#ffffff'}} }%%
gitGraph
    commit id: "A"
    commit id: "B"
    branch feature
    commit id: "C"
    commit id: "D"
    checkout main
    commit id: "E"
    merge feature id: "M"

git checkout main
git merge feature   # creates a merge commit M

The merge commit M records both parent branches, so you can always trace back to see where the feature was developed.

Note

If you prefer to always create a merge commit (even when a fast-forward is possible), use git merge --no-ff feature. This preserves the branch topology in the history, making it easier to see that a group of commits belonged to a feature branch.

Fast-forward merge

A fast-forward merge happens when the target branch (e.g., main) has received no new commits since you branched off. In other words, your feature branch is directly ahead of main.

%%{init: {'theme': 'base', 'themeVariables': {'git0': '#4A90D9', 'git1': '#E07B53', 'gitBranchLabel0': '#ffffff', 'gitBranchLabel1': '#ffffff', 'commitLabelColor': '#333333', 'commitLabelBackground': '#ffffff'}} }%%
gitGraph
    commit id: "A"
    commit id: "B"
    branch feature
    commit id: "C"
    commit id: "D"

Because there is no divergence, Git simply moves the main pointer forward to the latest commit on feature, so no extra merge commit is created.

%%{init: {'theme': 'base', 'themeVariables': {'git0': '#4A90D9', 'gitBranchLabel0': '#ffffff', 'commitLabelColor': '#333333', 'commitLabelBackground': '#ffffff'}} }%%
gitGraph
    commit id: "A"
    commit id: "B"
    commit id: "C"
    commit id: "D"

git checkout main
git merge feature          # fast-forward (default when possible)
# Or, to be explicit:
git merge --ff-only feature  # fails if fast-forward is not possible

Tip

Use --ff-only when you want to guarantee a linear history. If the branches have diverged, the command will fail instead of silently creating a merge commit.

Quick comparison

	Fast-forward	Regular (3-way)
When	Target branch has no new commits	Both branches have new commits
Merge commit	No	Yes
History shape	Linear	Shows branch and merge
Command	git merge or git merge --ff-only	git merge or git merge --no-ff
