Example: MLP Training Pipeline
In deep learning code, data, models, training, and visualization are deeply intertwined, maximizing the benefits of modularization.
Monolithic Script
Data generation, model definition, training loop, evaluation, and visualization are all hardcoded in a single file.
train.py
import torch
import torch.nn as nn
import matplotlib.pyplot as plt
# Hardcoded settings
N, D, EPOCHS, LR = 1000, 10, 100, 1e-3
X = torch.randn(N, D)
y = (X.sum(dim=1) > 0).float()
X_train, X_test = X[:800], X[800:]
y_train, y_test = y[:800], y[800:]
model = nn.Sequential(
nn.Linear(D, 64), nn.ReLU(),
nn.Linear(64, 1), nn.Sigmoid()
)
optimizer = torch.optim.Adam(model.parameters(), lr=LR)
criterion = nn.BCELoss()
losses = []
for epoch in range(EPOCHS):
pred = model(X_train).squeeze()
loss = criterion(pred, y_train)
optimizer.zero_grad()
loss.backward()
optimizer.step()
losses.append(loss.item())
with torch.no_grad():
acc = ((model(X_test).squeeze() > 0.5) == y_test).float().mean()
print(f"Accuracy: {acc:.3f}")
plt.plot(losses)
plt.savefig('loss.png')
plt.show()
Problems
- Want to change
hidden_dim? → Must open and modify the code. - Want to change
lr? → Must open and modify the code. - Want to change model architecture? → Must modify the training code as well.
- Where are experimental conditions recorded? → Nowhere.
Modular Code
Project Structure
ml_project/
ml_project/
├── config.json ← Experiment settings (I/O separation)
├── dataset.py ← Data loading
├── model.py ← Model definition
├── trainer.py ← Training/evaluation logic
├── visualizer.py ← Visualization
└── main.py ← Executes train(cfg)
Separating I/O with config
config.json
{
"data": {
"n_samples": 1000,
"n_features": 10,
"train_ratio": 0.8
},
"model": {
"hidden_dim": 64
},
"train": {
"epochs": 100,
"lr": 0.001
},
"output": {
"save_path": "loss.png"
}
}
Code for Data Handling
dataset.py
import torch
class ExperimentDataset:
def __init__(self, n_samples, n_features, train_ratio=0.8):
X = torch.randn(n_samples, n_features)
y = (X.sum(dim=1) > 0).float()
split = int(n_samples * train_ratio)
self.X_train, self.X_test = X[:split], X[split:]
self.y_train, self.y_test = y[:split], y[split:]
Code for Model Architecture
model.py
import torch.nn as nn
class MLP(nn.Module):
def __init__(self, input_dim, hidden_dim=64):
super().__init__()
self.net = nn.Sequential(
nn.Linear(input_dim, hidden_dim), nn.ReLU(),
nn.Linear(hidden_dim, 1), nn.Sigmoid()
)
def forward(self, x):
return self.net(x)
Code for Training/Evaluation Logic
trainer.py
import torch
class Trainer:
def __init__(self, model, lr=1e-3):
self.model = model
self.optimizer = torch.optim.Adam(model.parameters(), lr=lr)
self.criterion = torch.nn.BCELoss()
self.losses = []
def train(self, X, y, epochs=100):
for _ in range(epochs):
pred = self.model(X).squeeze()
loss = self.criterion(pred, y)
self.optimizer.zero_grad()
loss.backward()
self.optimizer.step()
self.losses.append(loss.item())
def evaluate(self, X, y):
with torch.no_grad():
return ((self.model(X).squeeze() > 0.5) == y).float().mean().item()
Code Dedicated to Visualization
visualizer.py
import matplotlib.pyplot as plt
def plot_loss(losses, save_path=None):
plt.plot(losses)
plt.xlabel('Epoch')
plt.ylabel('Loss')
plt.title('Training Loss')
if save_path:
plt.savefig(save_path)
plt.show()
Entrypoint: main.py
main.py
import json
from dataset import ExperimentDataset
from model import MLP
from trainer import Trainer
from visualizer import plot_loss
def train(cfg):
data = ExperimentDataset(**cfg['data'])
model = MLP(cfg['data']['n_features'], **cfg['model'])
trainer = Trainer(model, lr=cfg['train']['lr'])
trainer.train(data.X_train, data.y_train, epochs=cfg['train']['epochs'])
print(f"Accuracy: {trainer.evaluate(data.X_test, data.y_test):.3f}")
plot_loss(trainer.losses, save_path=cfg['output']['save_path'])
if __name__ == '__main__':
with open('config.json') as f:
cfg = json.load(f)
train(cfg)
Scenarios Highlighting the Benefits
Changing Hyperparameters
Experiment Version Control
Creating config_v1.json and config_v2.json automatically records experimental conditions.
Replacing the Model
model.py
class MLP(nn.Module):
def __init__(self, input_dim, hidden_dim=64):
super().__init__()
self.net = nn.Sequential(
nn.Linear(input_dim, hidden_dim), nn.ReLU(),
nn.Linear(hidden_dim, hidden_dim), nn.ReLU(), # Added layer
nn.Linear(hidden_dim, 1), nn.Sigmoid()
)
def forward(self, x):
return self.net(x)
Version Control: Tracking Changes with git diff
Monolithic Script:
git diff: train.py
--- a/train.py
+++ b/train.py
@@ ... Must find what changed in a single 30-line file ...
model = nn.Sequential(
nn.Linear(D, 64), nn.ReLU(),
+ nn.Linear(64, 64), nn.ReLU(),
nn.Linear(64, 1), nn.Sigmoid()
)
Modular Code: The changed file itself indicates the intention.
git diff: model.py
--- a/model.py
+++ b/model.py
self.net = nn.Sequential(
nn.Linear(input_dim, hidden_dim), nn.ReLU(),
+ nn.Linear(hidden_dim, hidden_dim), nn.ReLU(),
nn.Linear(hidden_dim, 1), nn.Sigmoid()
)
Collaboration: Modifying Different Files, Minimizing Merge Conflicts
Two people working simultaneously:
- A (ML Engineer): Adds Dropout to the model.
- B (Data Engineer): Adds normalization to data loading.
Monolithic Script: Both modify the single train.py file. A changes the model definition, and B changes the data preprocessing/splitting right above it. Merging causes a conflict in the same section.
After creating label y, inserts Dropout into the model definition (branch-A assumes B's normalization line doesn't exist yet).
Inserts feature normalization right after calculating y, keeping the original model structure.
train.py (branch-B excerpt)
y = (X.sum(dim=1) > 0).float()
X = (X - X.mean(dim=0)) / X.std(dim=0)
X_train, X_test = X[:800], X[800:]
y_train, y_test = y[:800], y[800:]
model = nn.Sequential(
nn.Linear(D, 64), nn.ReLU(),
nn.Linear(64, 1), nn.Sigmoid()
)
optimizer = torch.optim.Adam(model.parameters(), lr=LR)
train.py (merge conflict)
# train.py (git merge result)
y = (X.sum(dim=1) > 0).float()
<<<<<<< branch-A (ML Engineer)
model = nn.Sequential(
nn.Linear(D, 64), nn.ReLU(), nn.Dropout(0.3),
nn.Linear(64, 1), nn.Sigmoid()
)
=======
X = (X - X.mean(dim=0)) / X.std(dim=0)
X_train, X_test = X[:800], X[800:]
model = nn.Sequential(
nn.Linear(D, 64), nn.ReLU(),
nn.Linear(64, 1), nn.Sigmoid()
)
>>>>>>> branch-B (Data Engineer)
Modular Code: A only modifies model.py, and B only modifies dataset.py. Diffs are separated by file, and merging is conflict-free.
dataset.py (branch-B excerpt)
class ExperimentDataset:
def __init__(self, n_samples, n_features, train_ratio=0.8):
X = torch.randn(n_samples, n_features)
X = (X - X.mean(dim=0)) / (X.std(dim=0) + 1e-8)
y = (X.sum(dim=1) > 0).float()
split = int(n_samples * train_ratio)
self.X_train, self.X_test = X[:split], X[split:]
self.y_train, self.y_test = y[:split], y[split:]
Resolving Merge Conflicts

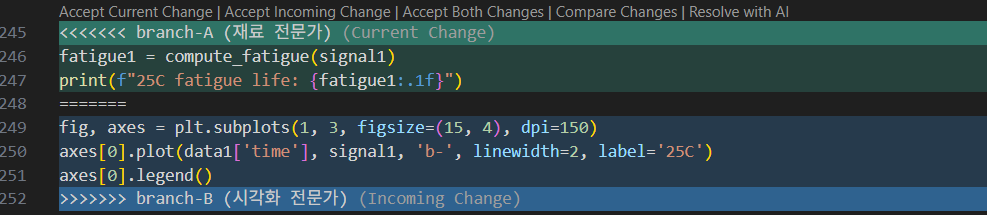

VS Code visually highlights merge conflicts, making it easy for users to select the desired branch's changes.
Code Maintenance and Scalability
search_optuna.py
import optuna
def objective(trial):
config = {
"lr": trial.suggest_float("lr", 1e-4, 1e-1, log=True),
"batch_size": trial.suggest_categorical("batch_size", [32, 64, 128]),
"epochs": 10,
}
return train(config) # Just pass it directly
study = optuna.create_study(direction="minimize")
study.optimize(objective, n_trials=20)
Since train(config) receives the config as a dict, both Optuna and Ray can pass their generated dicts directly. No changes to the train code are required.
Comparison Summary
| Monolithic Script | train(cfg) Modular Code |
|
|---|---|---|
| Change Settings | Open and modify code | Modify only config.json |
| Experiment Record | None | Config file is the record |
| Replace Model | Modify entire code | Replace only model.py |
| Code Review | Must read everything | Check only changed files |
| Reproducibility | Not guaranteed | Guaranteed by config file |
git diff |
Changes scattered in one file | Changed files & intentions are clear |
| Collaboration | Same file → conflicts | Different files → auto-merge |
